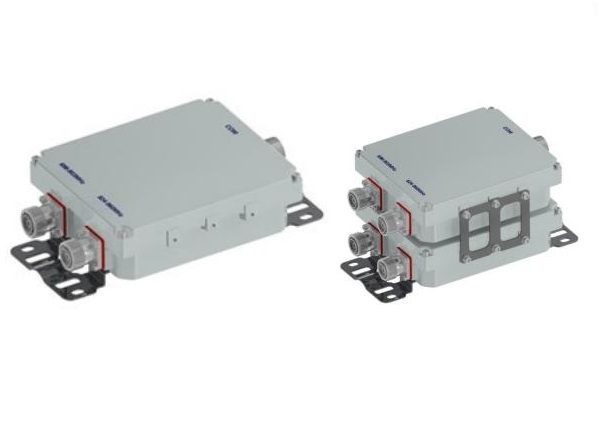

Diplexer Combiner (698-960)
Model: 121.06093
Product Details
50 dB input isolation
Very low insertion loss
Excellent intermodulation performance
Built-in lightning protection
Wall or mast mounting
Specification
Electrical | ||
Frequency | 698-862 MHz | 880-960 MHz |
Insertion Loss | ≤0.5 dB | |
Isolation | ≥50 dB | |
Return Loss/VSWR | ≤-20dB/1.22 | |
PIM, 3rd Order | ≤ -160 dBc (2x43 dBm carrier) | |
Average Power, maximum | 200 W | |
Impedance | 50Ω | |
DC/AISG | By-pass(max.3000mA) | |
Lightning Protection | 10KA; 10/350μs pulse | |
Mechanical | ||
Operating Temperature | -20°C to +65°C | |
Storage Temperature | -40°C to +85°C | |
Relative Humidity | 5% - 95% | |
Classification of Waterproof | IP67 | |
Dimensions (H x W x D) | 202x170x62mm | |
Net Weight (with installation kit) | ≤2.8 kg | |
Connector | 4.3-10 Female | |
